HD Wireless Video Transmitter COFDM Module HDMI & CVBS Inputs 8MHz Bandwidth

Product Categories

Kimpok Technology Co., Ltd

Contact Now

Name: HD Wireless Video Transmitter COFDM Module HDMI amp CVBS Inputs 8MHz Bandwidth
Brand: Kimpok Technology / OEM
Price: 1 USD

Brand Name : Kimpok Technology / OEM

Model Number : KP-HDMIBD030

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 1000pcs/month

Delivery Time : 7-15 working days

Packaging Details : International packing

Product name : COFDM video transmitter mainboard

Modulation : COFDM 2K

Bandwidth : 6M/8MHz (adjustable)

Video compression : AES 128/256 bits

Video Encoding : H.264/H.265

Latency : 60-100ms

Contact Now

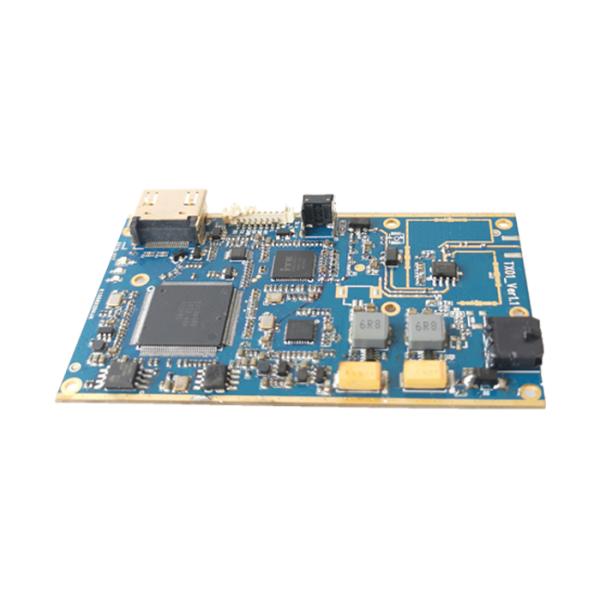

HD Wireless Video Transmitter OEM Mainboard HDMI & CVBS Inputs 8MHz Bandwidth

Features HDMI video transmitter mainboard:

■ HDMI and CVBS dual video inputs

■ 1080p@30fps

■ 200MHz~2.7GHz wide range frequency

■ 60-100ms low system latency

■ H.265/H.264 encoding

■ AES 128/256 encryption

■ Mini size and light weight

Specification:

Transmission Characteristics
Modulation Type	QPSK(4QAM), 16QAM, 64QAM
Frequency	200MHz-2.7GHz
Output Power	-15dBm (adjustable)
RF Bandwidth	2/4/6/8MHz
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input	HDMI: 1080p/1080i/720p/720i @60/50/30/25/24fps (self-adaption) AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Encoding	H.265/H.264
RF Interface	IPEX Female
Parameter Control	Using the USB programmer
Encryption	AES256 (User defined password)
Electrical Characteristics
Working Voltage	DC 7V-24V
Working Current	≤0.19A (@12V)
Power Consumption	2.28W
Physical Characteristics
Weight	31g
Dimensions	70x45x1.2mm
Working Temp.	-20℃ ~ +70℃

HD Wireless Video Transmitter COFDM Module HDMI & CVBS Inputs 8MHz Bandwidth
